48V adjustable step-down regulator module, DC-DC, LM2596HV input, 4.5-60v pow TH

Model / name: LM2596HVS DC-DC buck module

input voltage: 4.5V~60V

output voltage: 3V~40V

Output current: 3A (large)

conversion efficiency: 92% (high)

Output ripple: Less than 30mV

switching frequency: 150KHz

working temperature: -45 Celsius ？+ 85 Celsius

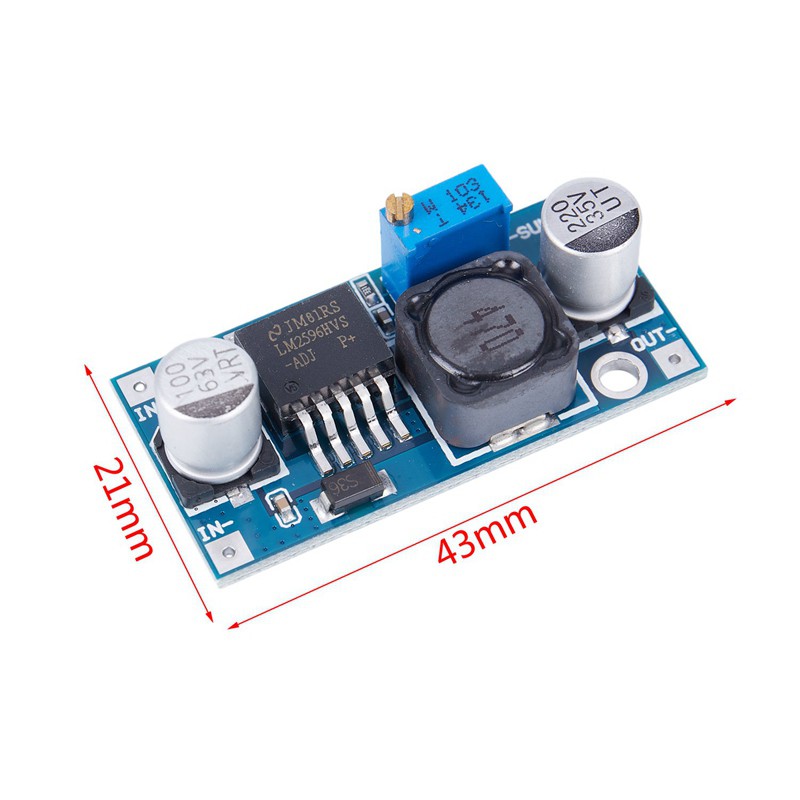

Size: 43mm * 21mm * 14mm (L * w * h)

Package Contents: 1 x DC-DC step-down power module

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
