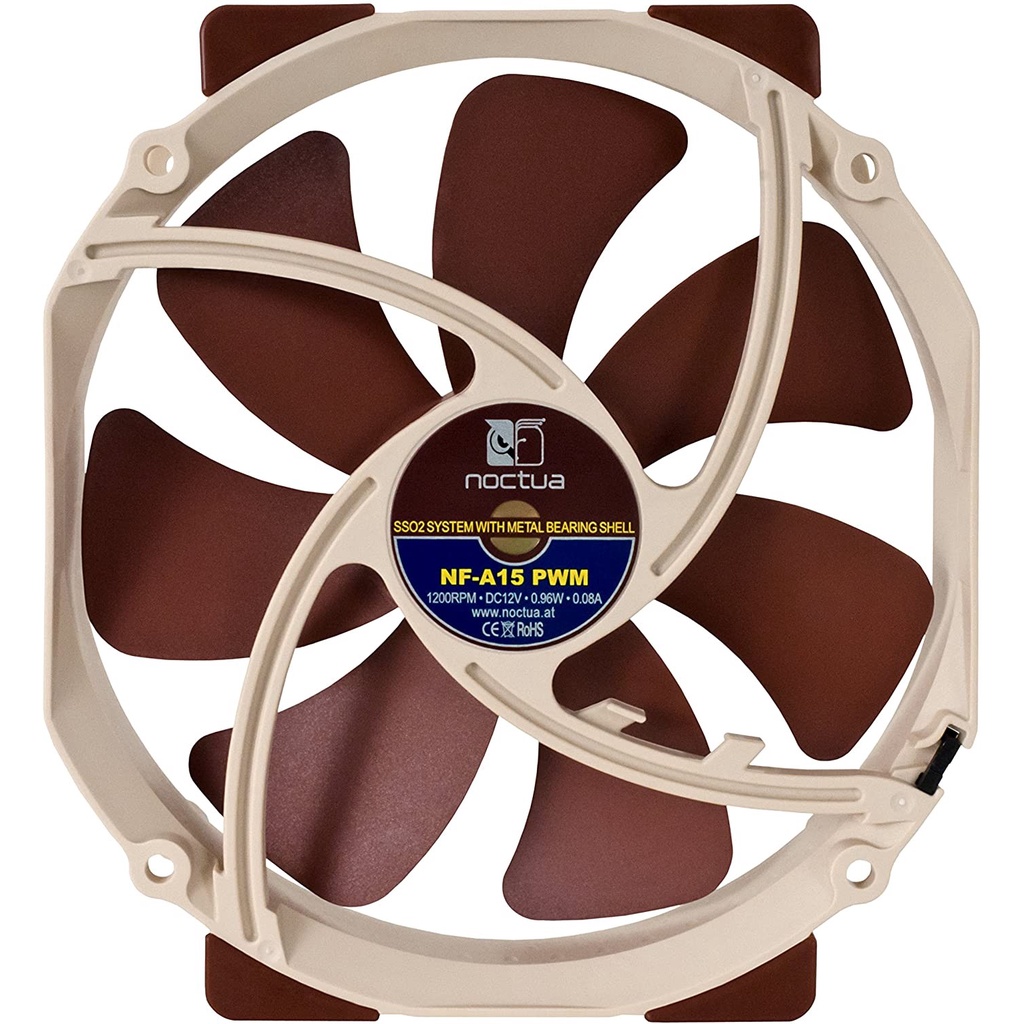

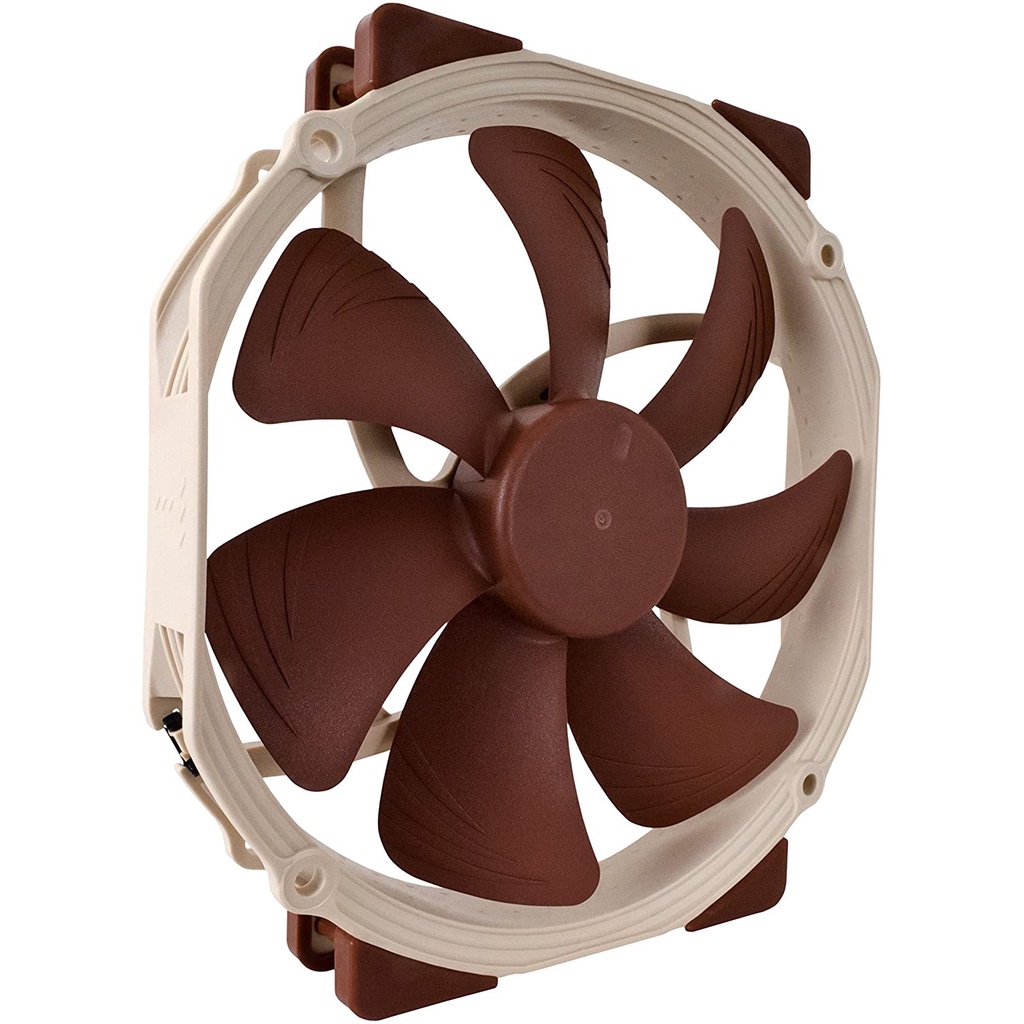

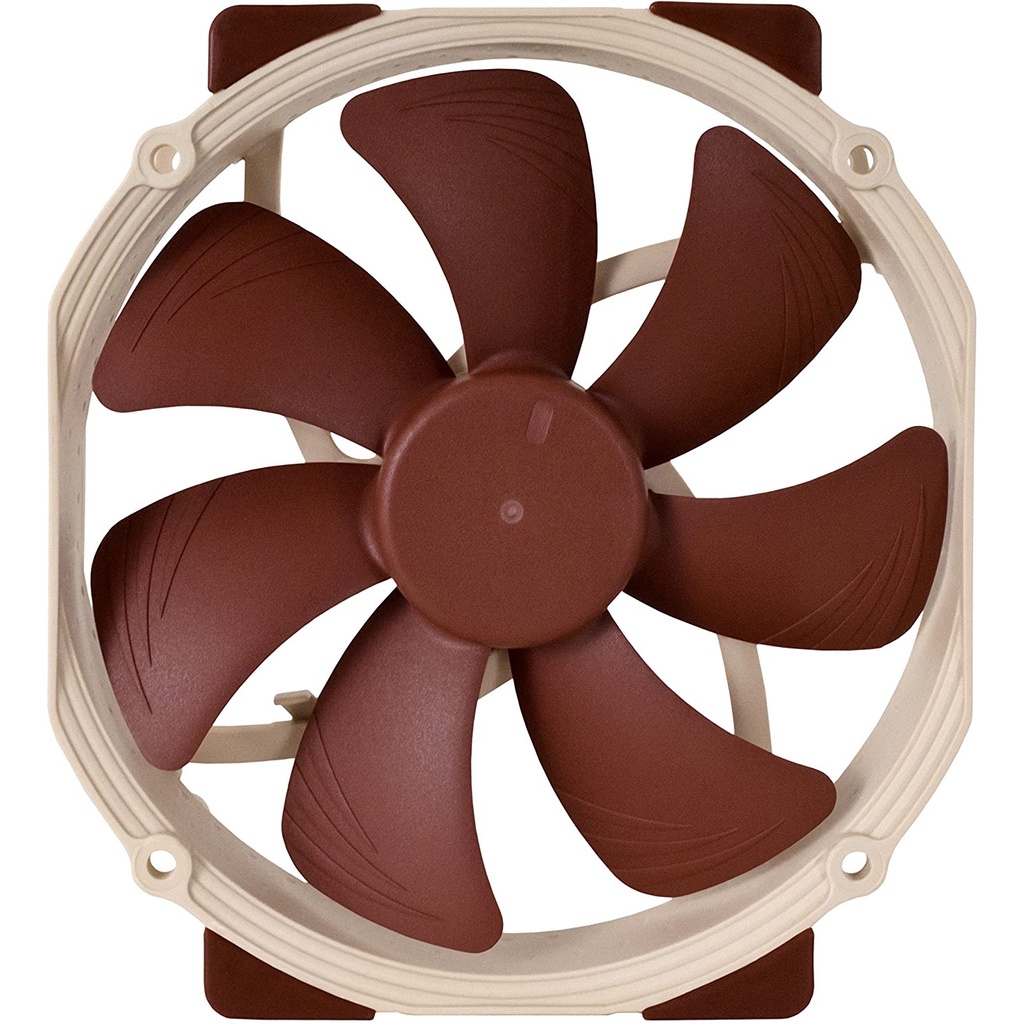

Noctua NF-A15 PWM Fan - 140mm

The NF-A15 is a premium quality quiet 140mm fan with a round frame that complies with Noctua’s AAO (Advanced Acoustic Optimisation) standard.

FAN Specification

Size 140x150x25 mm

Mounting hole spacing 105x105 mm

Connector & pin-configuration 4-pin PWM

Cable length 20cm + 30cm NA-EC1 extension cable

Bearing SSO2

Blade geometry A-Series with Flow Acceleration Channels

Frame technology AAO (Advanced Acoustic Optimisation)

Rotational speed (+/- 10%) 1200 RPM

Rotational speed with L.N.A. (+/- 10%) 900 RPM

Min. rotational speed (PWM, +/-20%) 300 RPM

Airflow 115,5 m³/h

Airflow with L.N.A. 88,7 m³/h

Acoustical noise 19,2 dB(A)

Static pressure 1,51 mm H₂...
