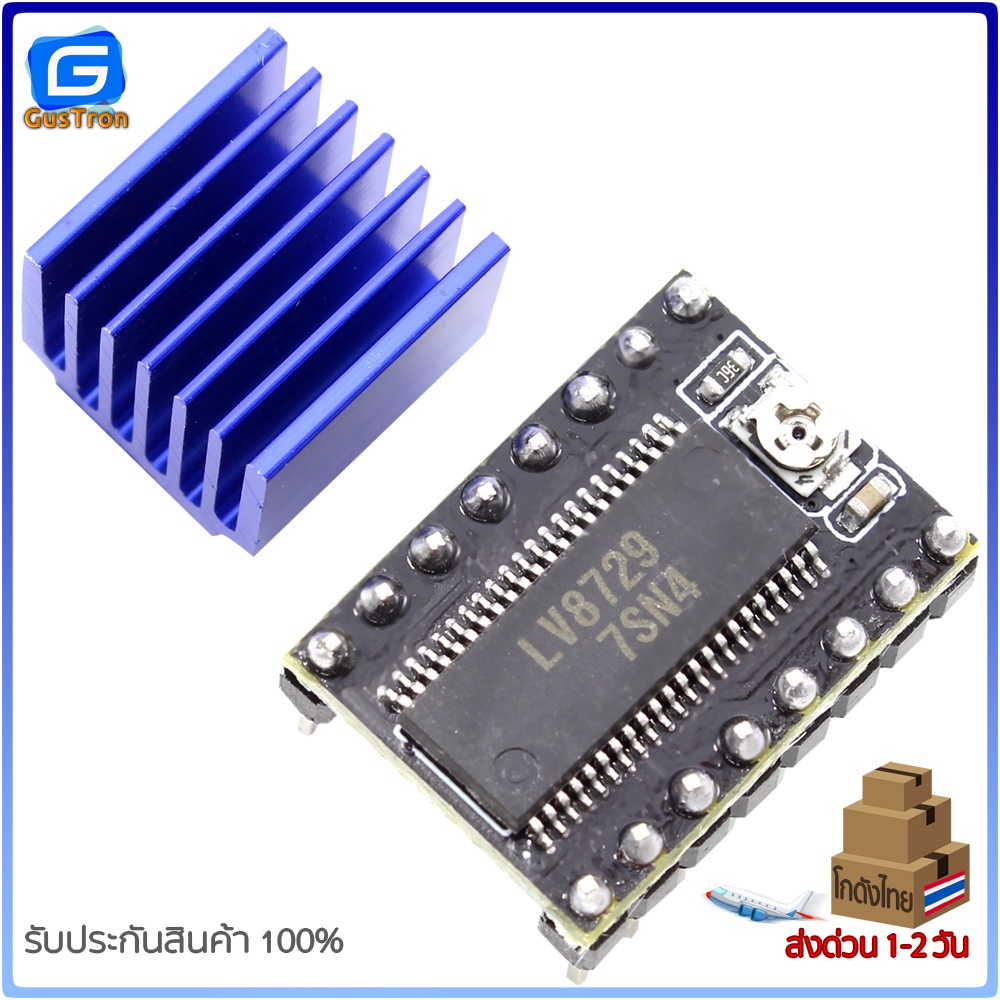

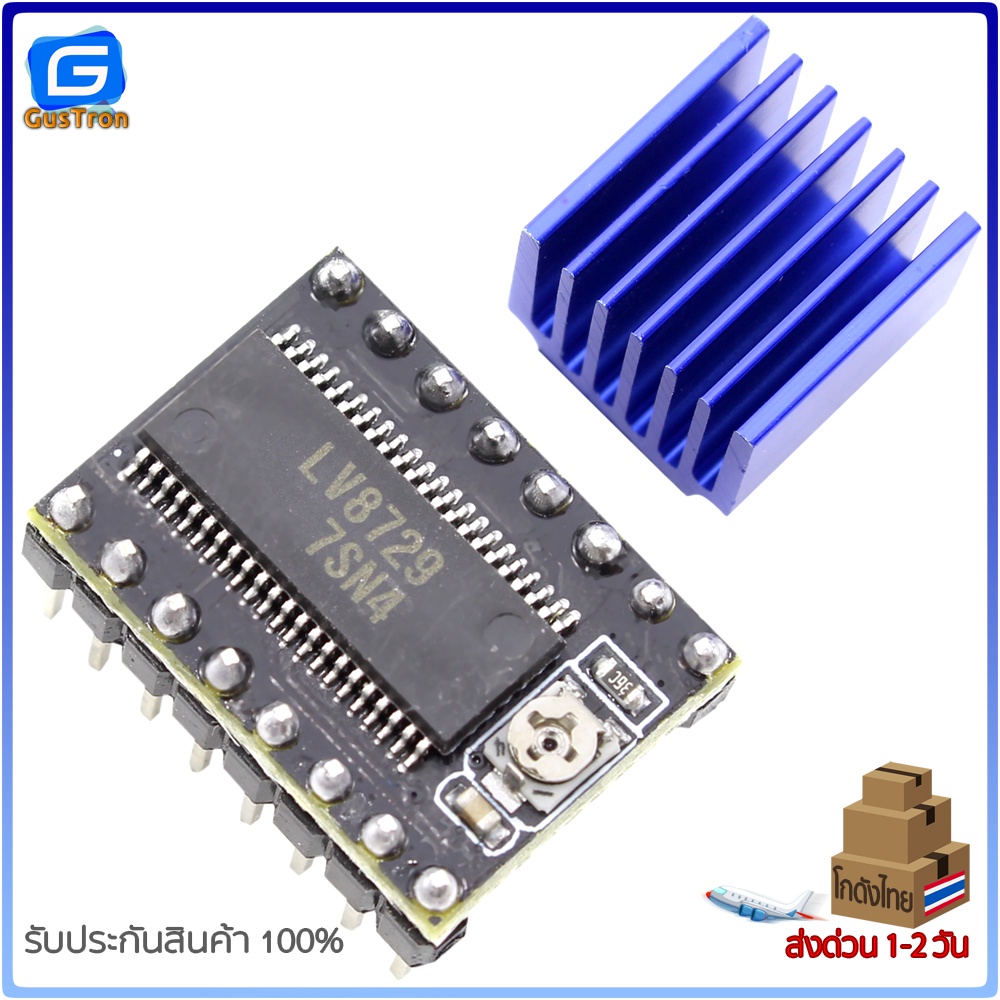

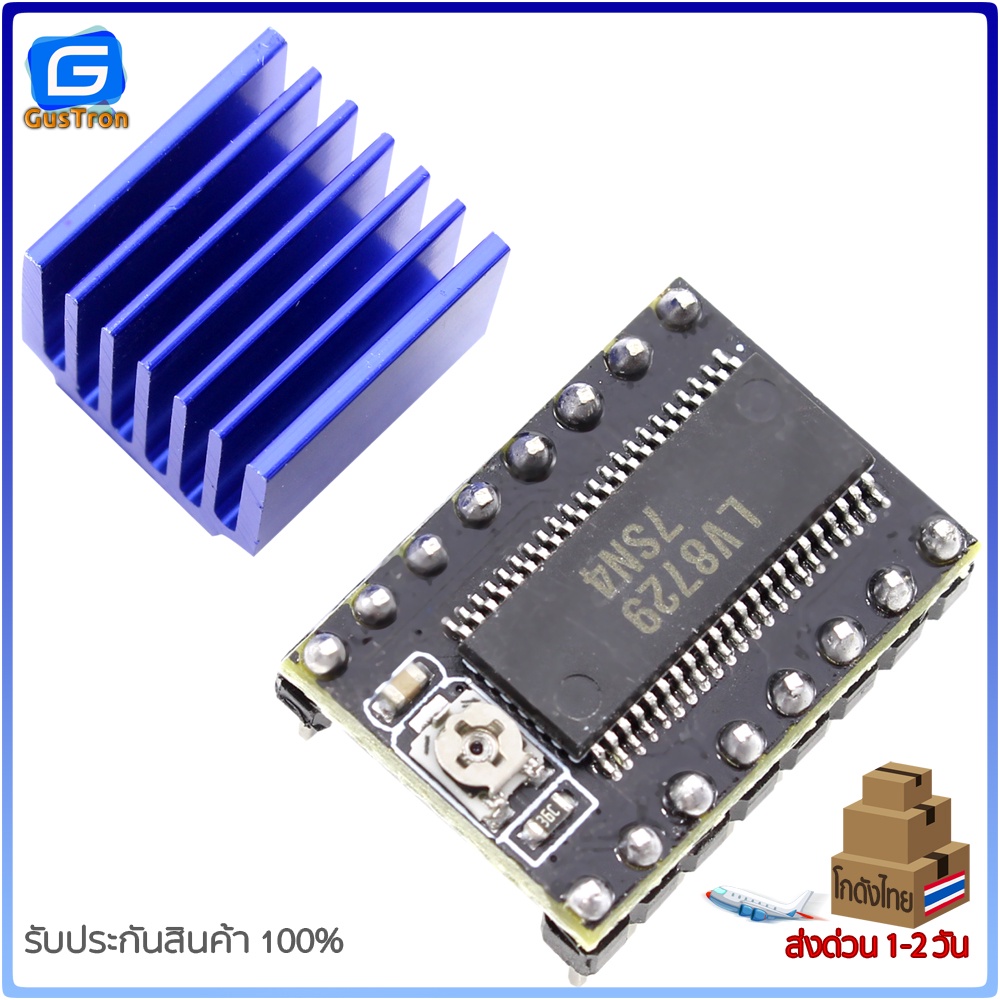

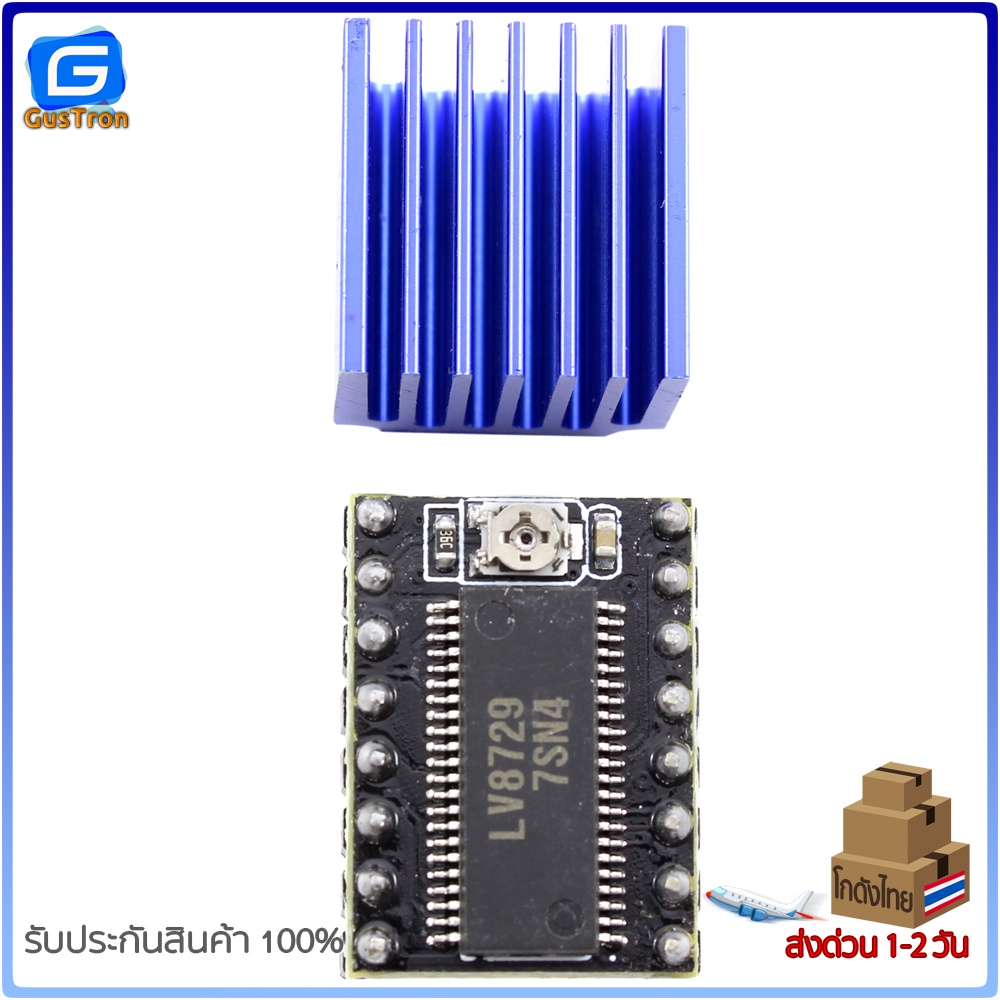

3D printer LV8729 stepper motor driver 128 high subdivision module

3D printer LV8729 stepper motor driver 128 high subdivision module

โมดูลขับมอเตอร์ LV8729 Driver Module ขับกระแสต่อเนื่องที่ 0.8A สูงสุด 1.8A แรงดัน 12V สูงสุด 36V

product manual

LV8729 driver module, 128 subdivision, in order to meet the customer needs high subdivision drive, and developed ultra-quiet in-line driver module, the use method is simpler, is the best choice for the printer to create a quiet environment.

Product specification parameters

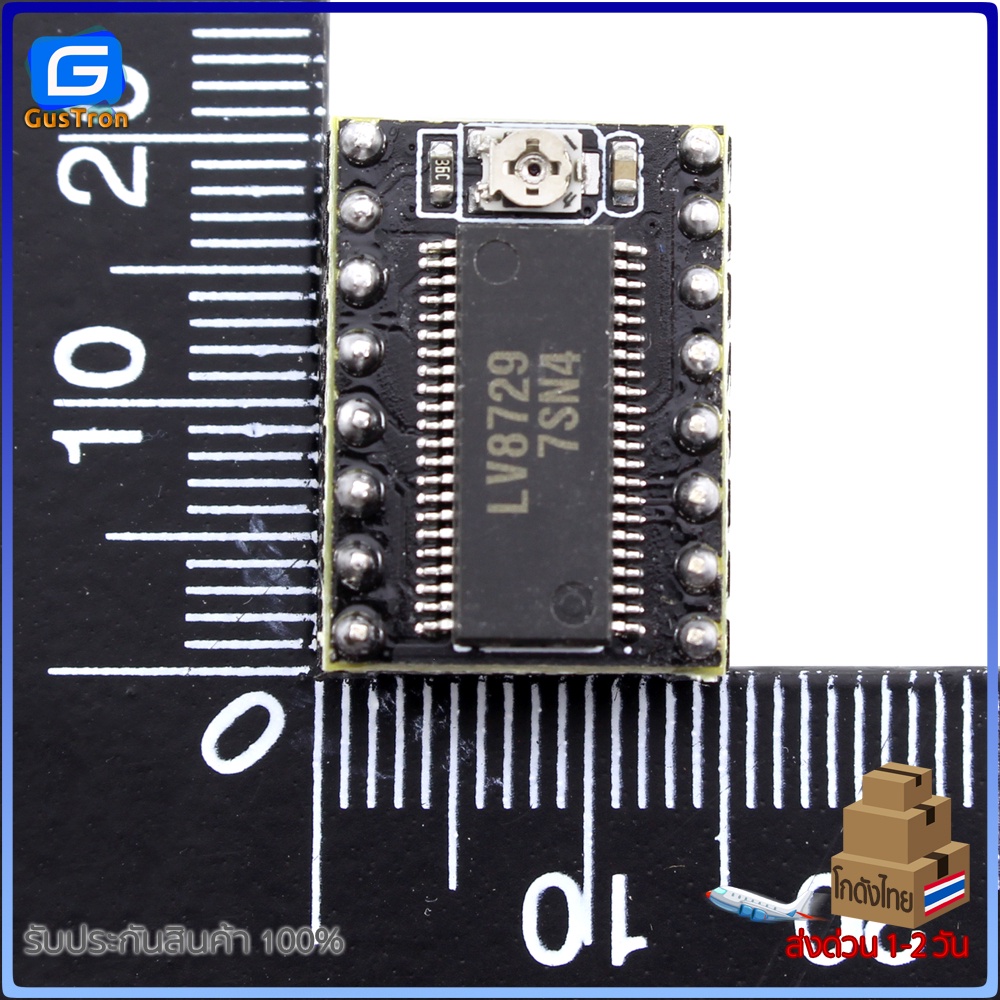

Dimensions: 1.5mmx2.0mm (same as A4988 and DRV8825)

Maximum drive current: 1.8A (factory default 0.8A)

Maximum voltage: 36V (usually 12V)

Support subdivision: 1, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128

Product Process: Four-layer PCB board

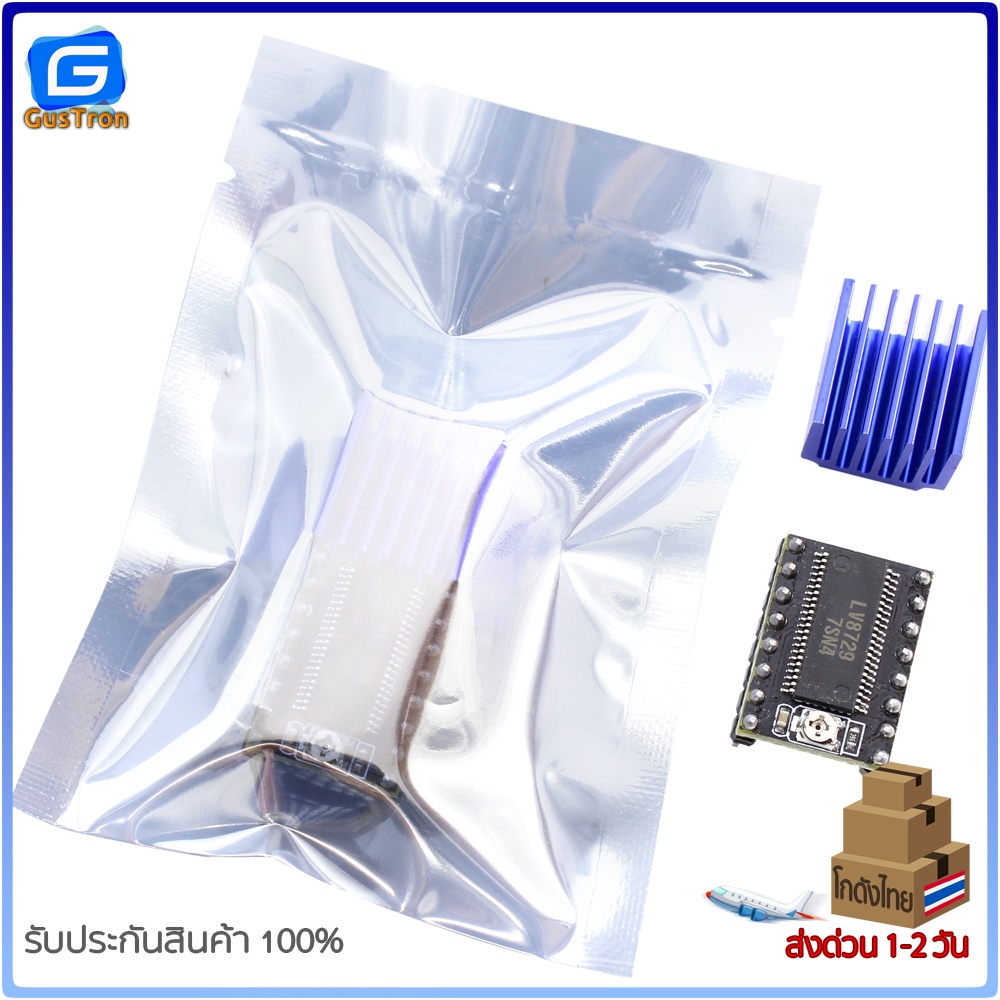

Delivery list: LV8729 module x 1, heat sink + sticker x1

Product weight: 5g

Features

In the 64 subdivision or 128 subdivision, you can have a better ultra-quiet effect;

Working voltage: 6V-36V, the recommended voltage is 12V;

The maximum current is 1.5A, the default is 0.8A;

Subdivision: 1, 1/2, 1/4...
