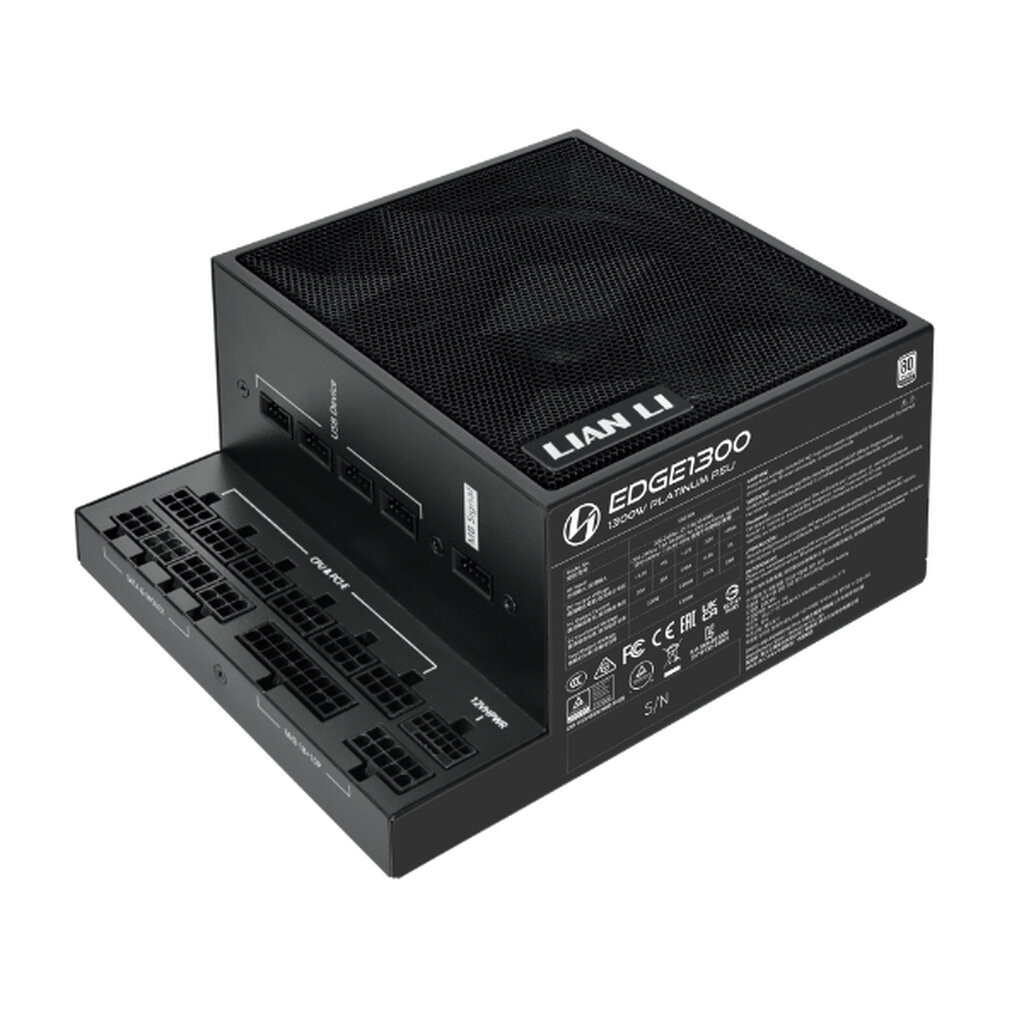

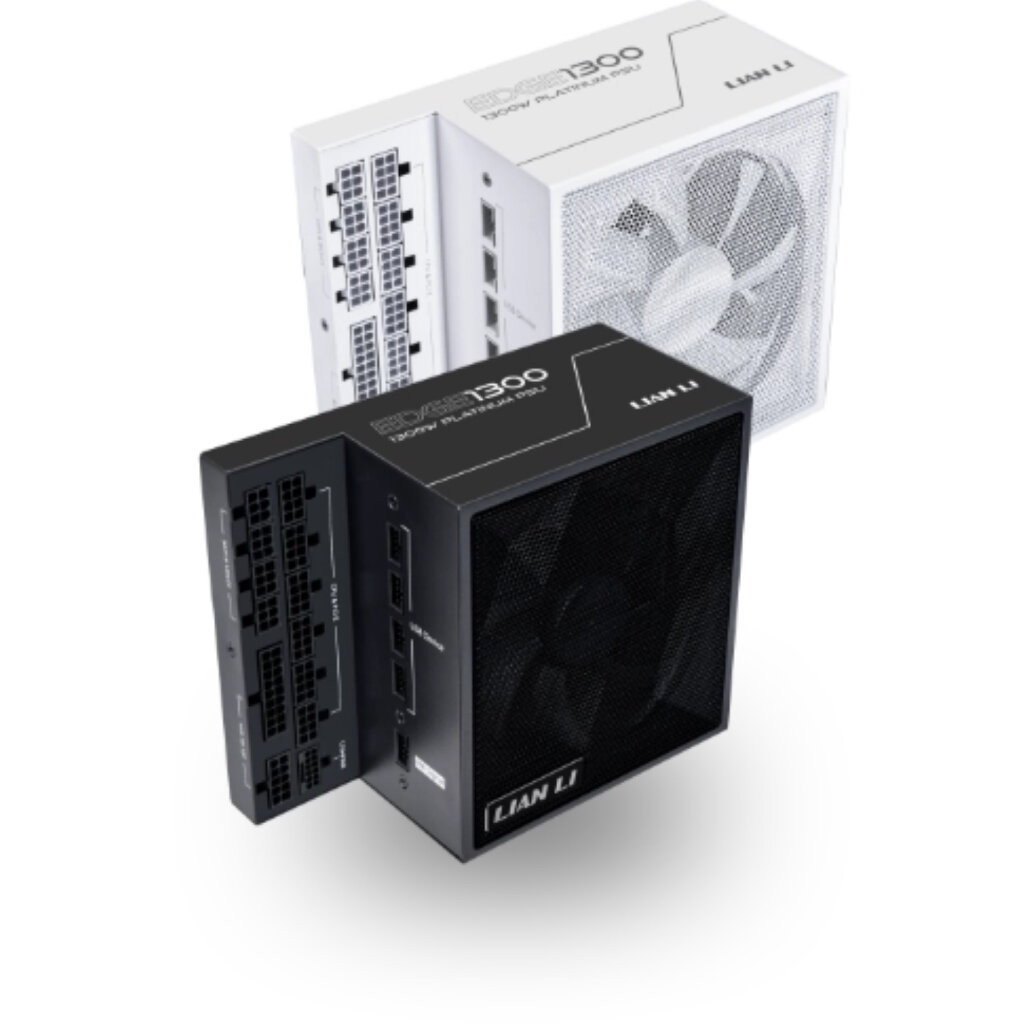

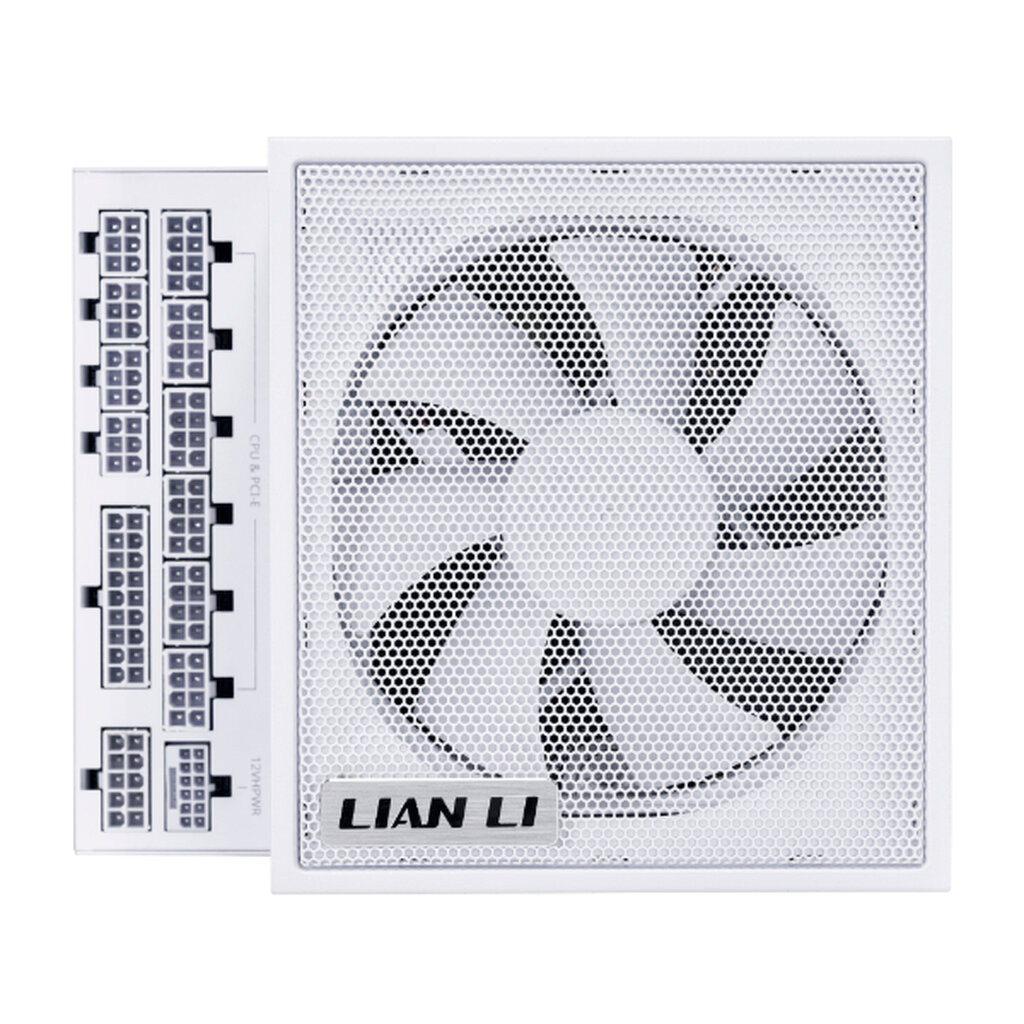

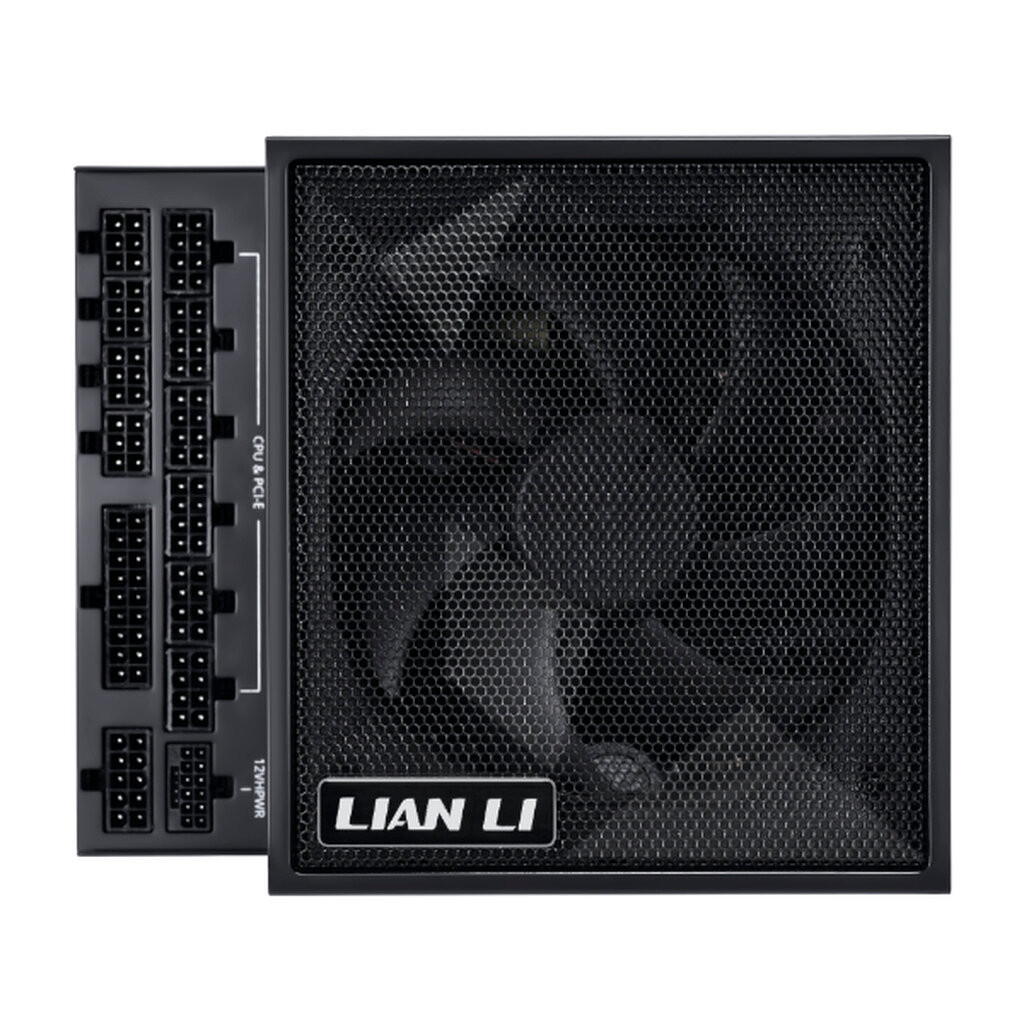

PSU LIAN LI Edge EG1350 EG1200 Black/White 1350W 1200W 1000W Cybenetics Power Supply - Platinium V2

สิ่งที่เพิ่มขึ้นมาใน V.2 ดังนี้

MODEL

EG1300

DIMENSIONS

(D)182 mm X (W)86 mm X (H)150 mm

POWER SUPPLY DESIGN

Fully modular

COLOR

Black/ White

MATERIAL

Steel,Plastic

FORM FACTOR

ATX 3.1

CERTIFICATION

80 PLUS PLATINUM / Cybenetics PLATINUM / PPLP PLATINUM

MAX. DC OUTPUT

1300W

COMBINED +3.3V & +5V

120W

COMBINED +12V

1296W

INPUT VOLTAGE

100-240Vac

INPUT FREQUENCY RANGE

15-7.5A 50-60Hz

PFC

Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz

EFFICIENCY

92.39% MAX

PROTECTIVE CIRCUIT

OCP/OVP/OTP/OPP/SCP/UVP

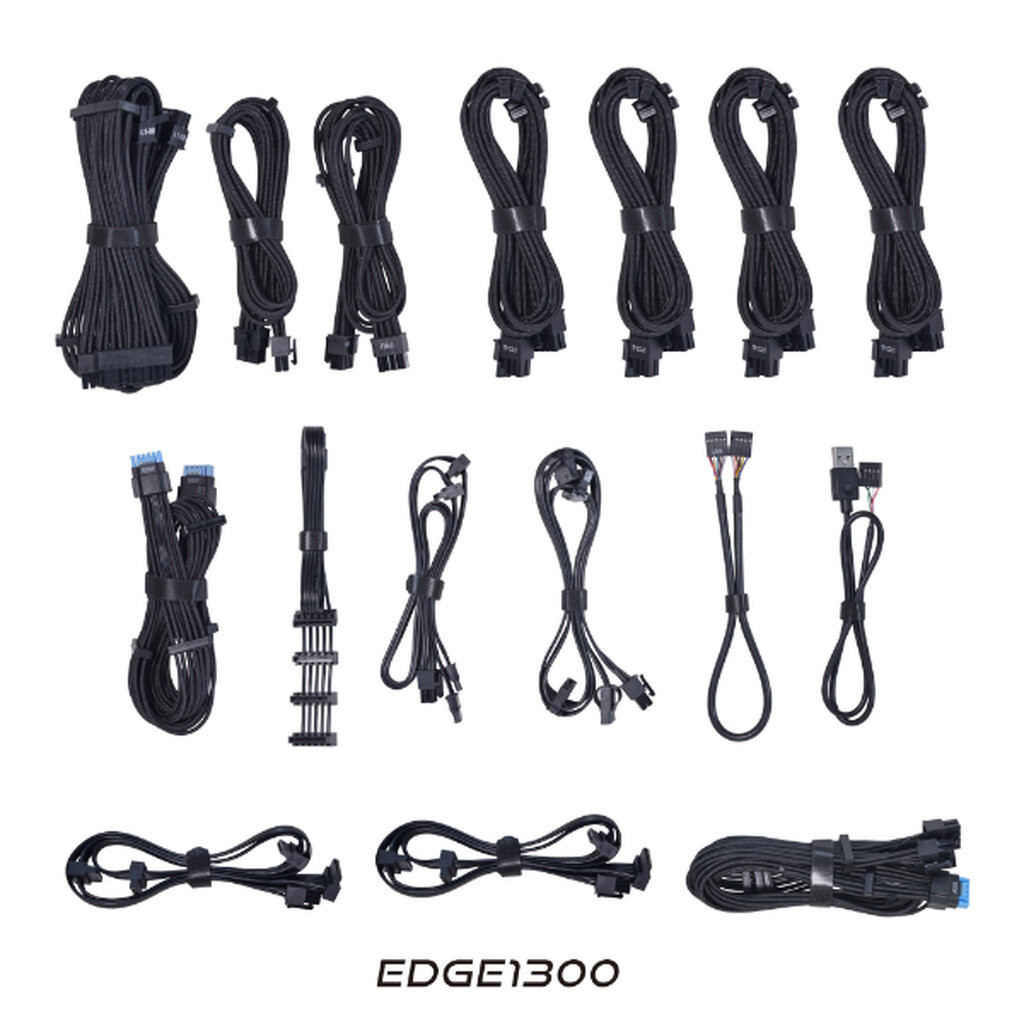

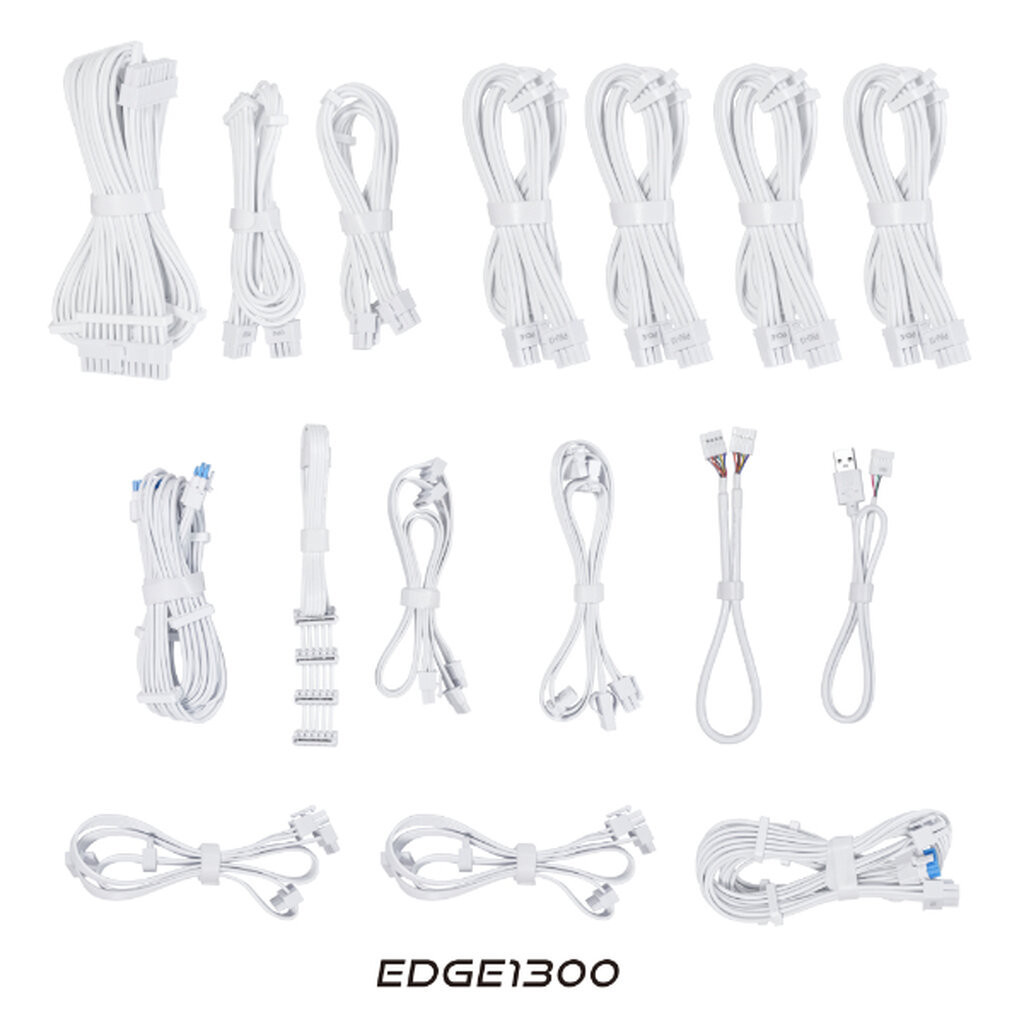

CONNECTORS

1 x 24/20-Pin motherboard connector (500mm) x1pcs

1 x 8/4+4 Pin CPU/ATX 12V connector (550mm) x2pcs

1 x 8/6+2 Pin PCle connector (550m m) x4pcs

1 x 12VHPWR connector (550mm) × 1pcs

1 x 12VHPWR – 2 x 8pin connector (550mm) × 1pcs

4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs

4 x SATA connector (400mm-150mm-150mm-150mm) x1pcs

4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs

4 x Y Type SATA connector (400mm-125mm*2) x1pcs

USB*9pin...
