โมดูลลดแรงดัน XL7015 DC-DC converter step down module 5V-80V เป็น 5-20V

XL7015 DC-DC step-down module is a highly efficient, high-voltage step-down DC- DC converter that can deliver up to 0.8A output current capability, low ripple, excellent line regulation and load regulation, input voltage to a maximum of 80V, far more than 2596 modules. Chip built a variety of protection mechanisms. It can be applied to electric vehicle controllers.

1. 5V to 80V wide input voltage range;

2. The output voltage is adjustable from 5V to 20V;

3. The minimum pressure drop 1V;

4. The maximum switching current of 0.8A;

5. Recommended output power less than 7W;

6. Built-in thermal shutdown protection, output short circuit protection, overcurrent protection;

7. The excellent linearity and load regulation;

Hardware introduction and notes

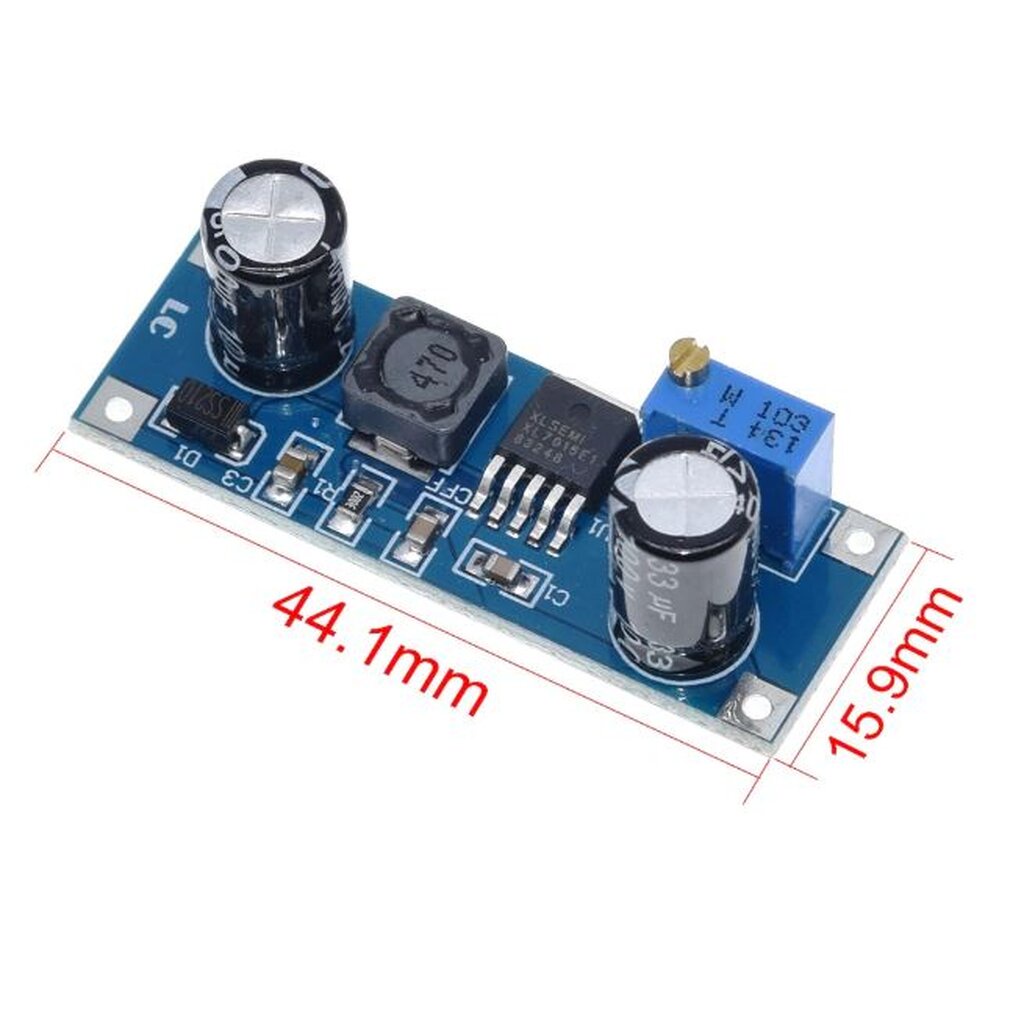

Board size: 16mm * 44mm;

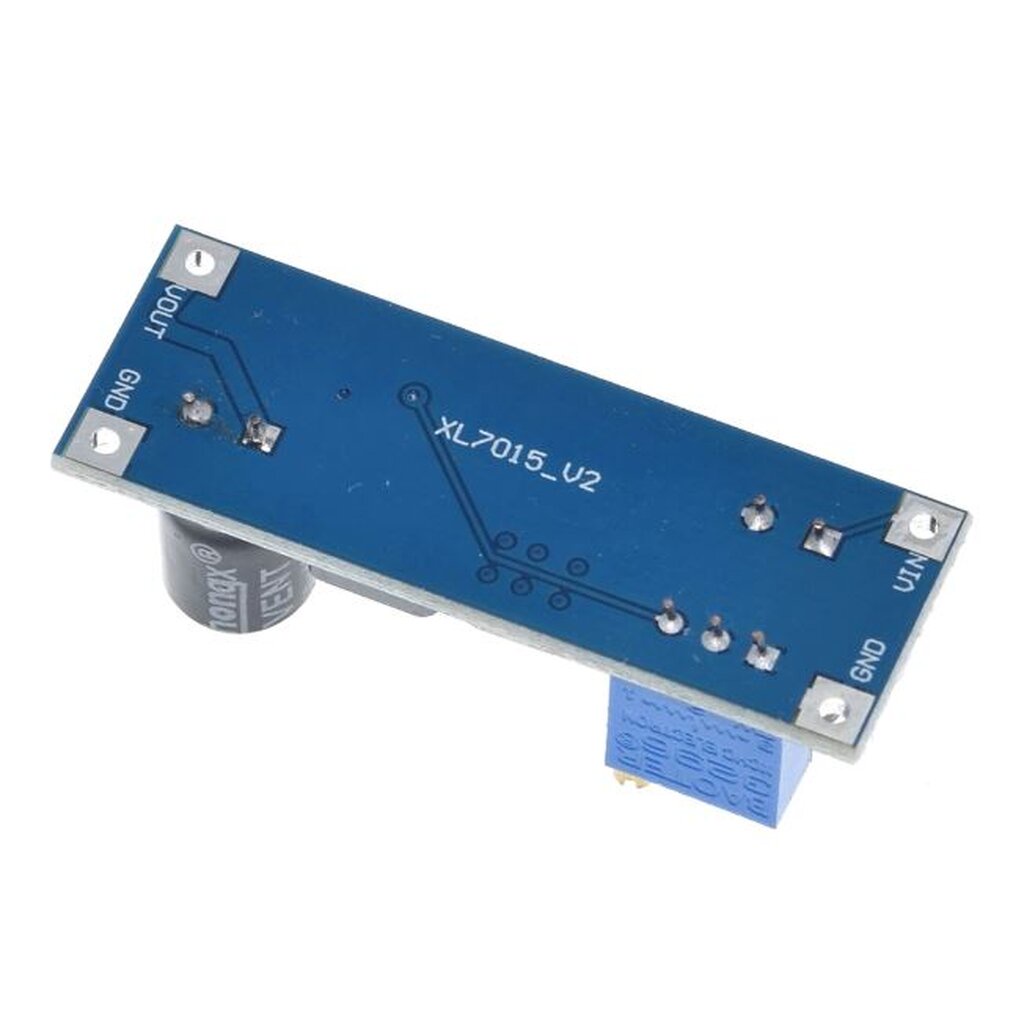

Wiring

1. VIN: input voltage (5V-80V);

2. GND: the input voltage ground terminal;

3. VOUT: Output voltage terminal (5V-20V);

4. GND: output voltage of the ground terminal;
