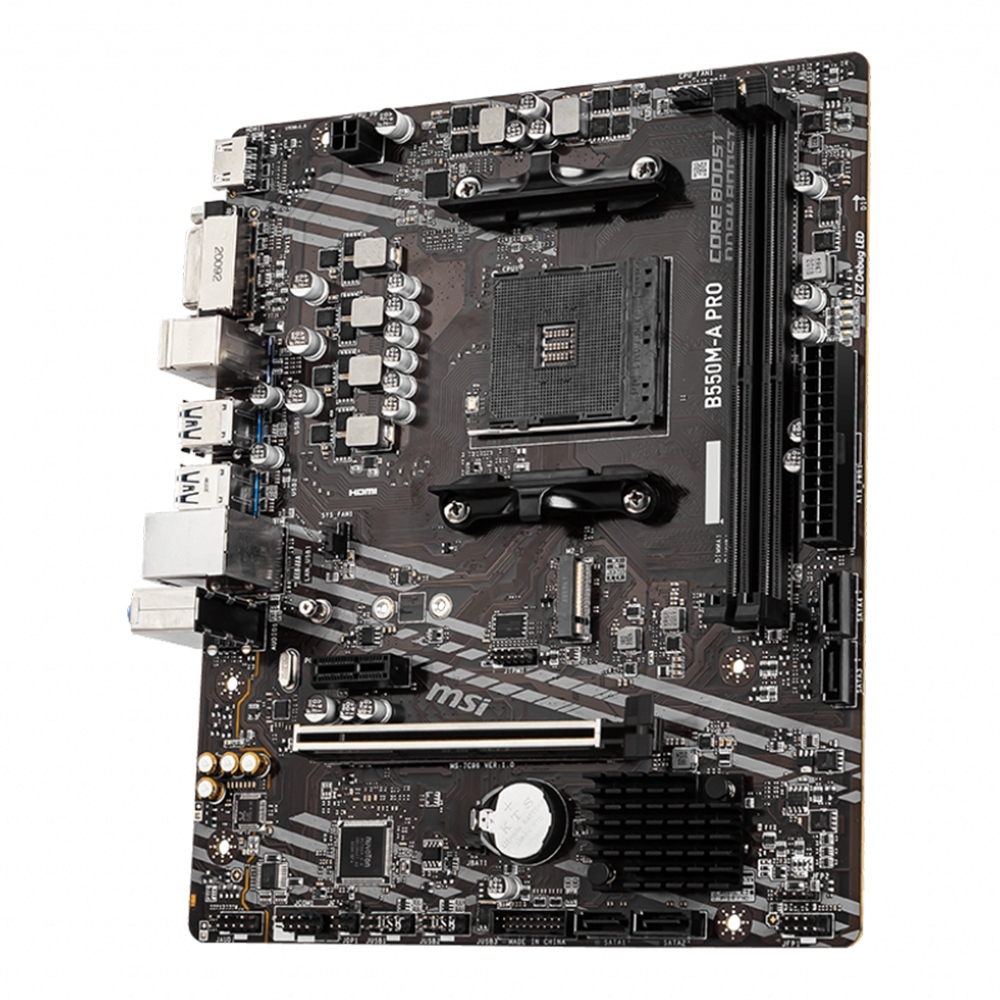

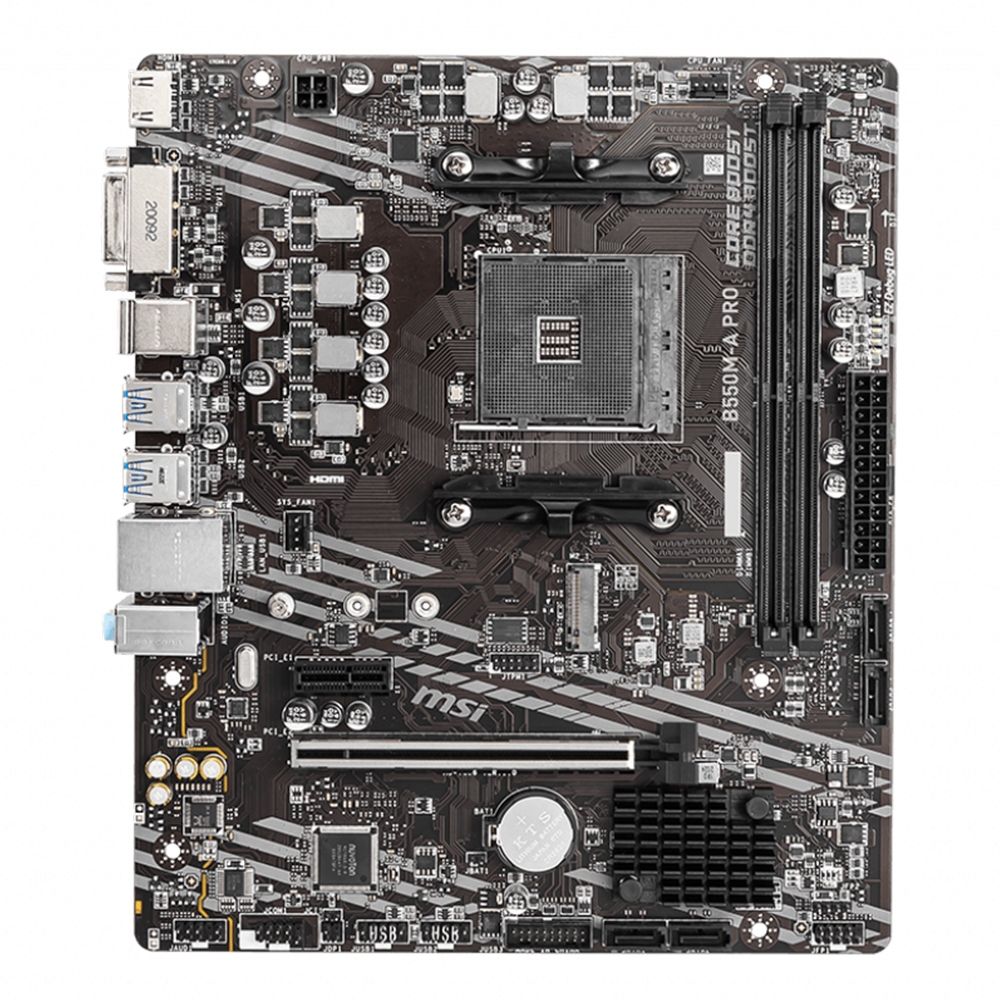

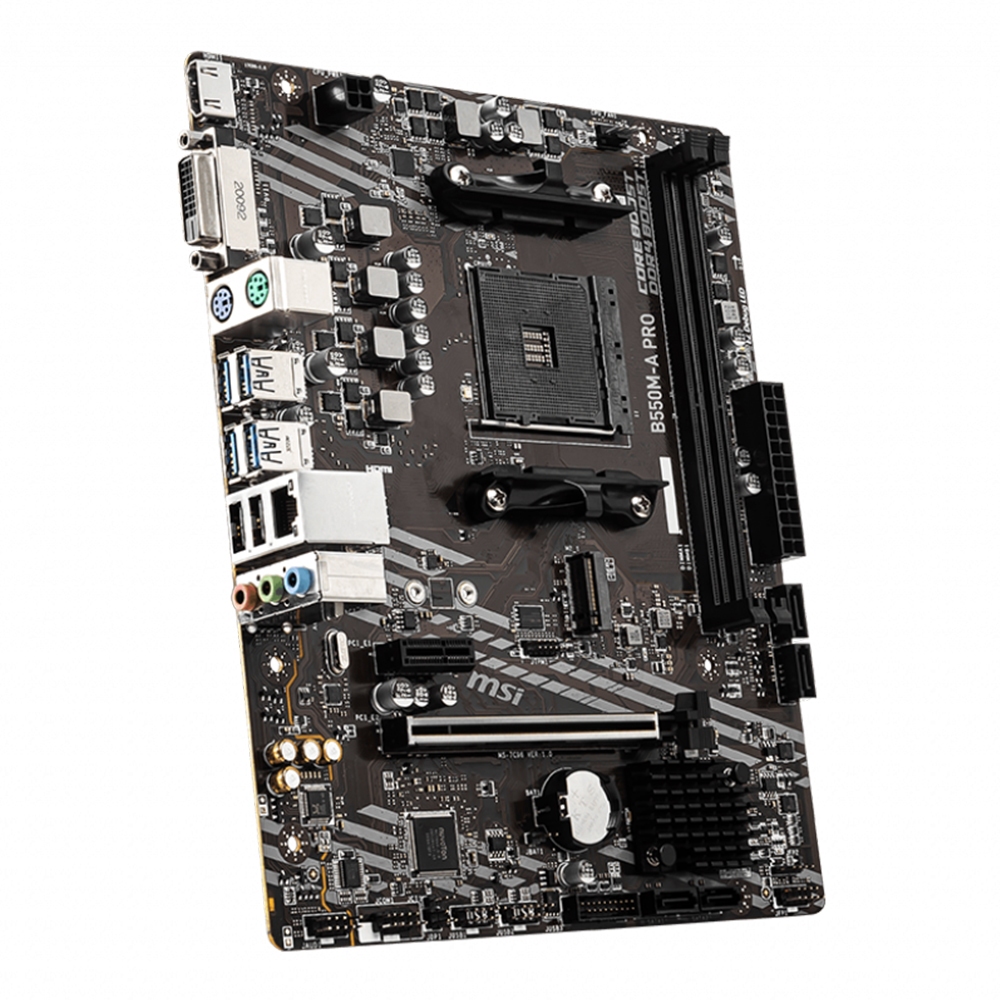

MAINBOARD (เมนบอร์ด) AM4 MSI B550M-A PRO รับประกัน 3 - y
รายละเอียดสินค้า
model
Brand
MSI
Model
B550M-A PRO
CPU
Socket
AM4 (3000 Series - Matisse) , AM4 (4000 G-Series - Renoir) , AM4 (4000 Series - Renoir) , AM4 (5000 G-Series - Cezanne) , AM4 (5000 Series - Vermeer / Cezanne)
Wattage
105W
Chipset
AMD B550
Series
Ryzen 3 , Ryzen 5 , Ryzen 7 , Ryzen 9
memory
Slot
4
Memory Type
DDR4
Max. Capacity
64 GB
Speed
1866 , 2133 , 2400 , 2666 , 2666 (OC) , 2800 , 2800 (OC) , 2933 , 2933 (OC) , 3000 , 3000 (OC) , 3066 , 3066(OC) , 3200 , 3200 (OC) , 3466 (OC) , 3600 (OC) , 3733 (OC) , 3866 (OC) , 4000 (OC) , 4133 , 4266 (OC) , 4400 (OC) , 4600+ (OC)
Graphic & Audio
Graphic
Integrated Graphics Processor (Depends on CPU)
Audio
Realtek ALC892/ALC897 Codec
7.1-Channel High Definition Audio
Storage
SATA 2
- Port
SATA 3
4 Port
RAID
NVMe : RAID 0/1
SATA : RAID 0/1/10
M.2
1 x M.2 Slot(s)
▬
1x M.2 slot (Key M) (from AMD Processor)
Supports PCIe 4.0/ 3.0*, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices
▬
*The supported specification depends on installed processor...
