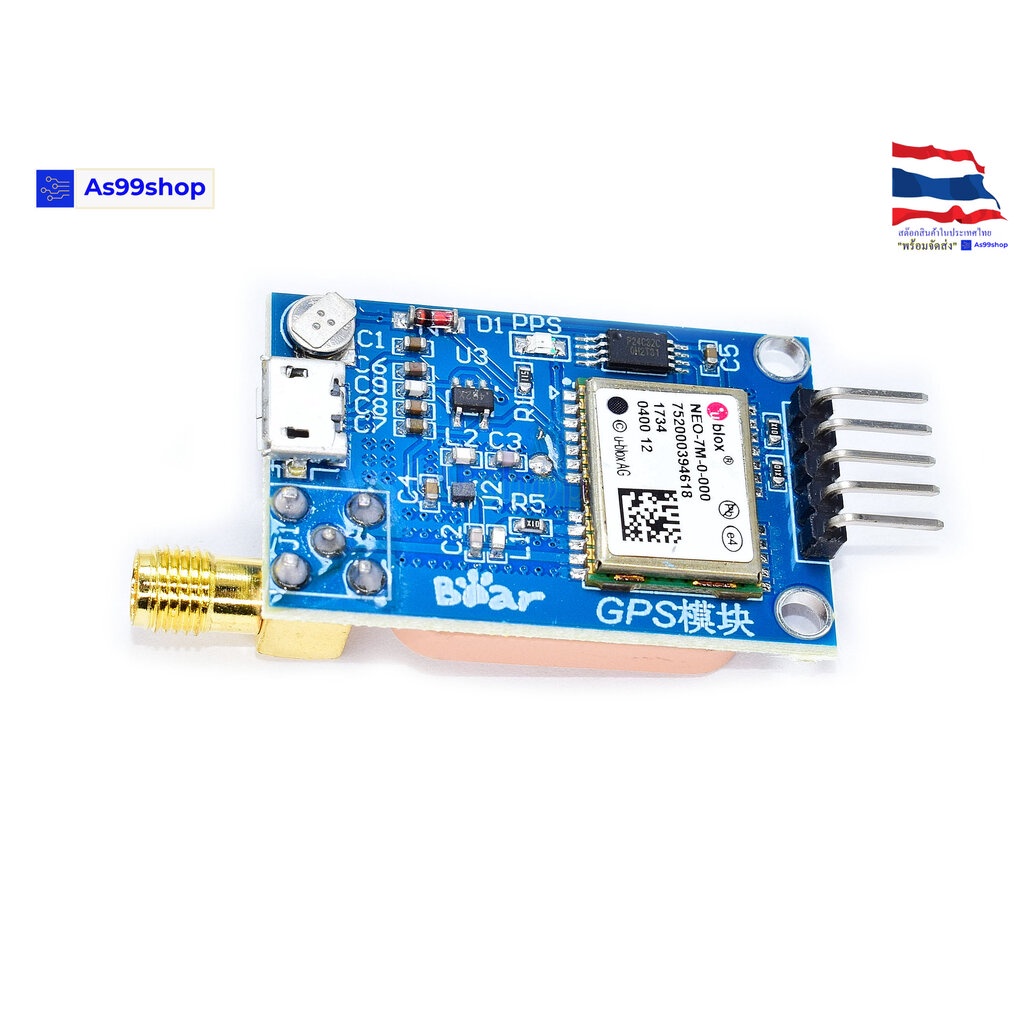

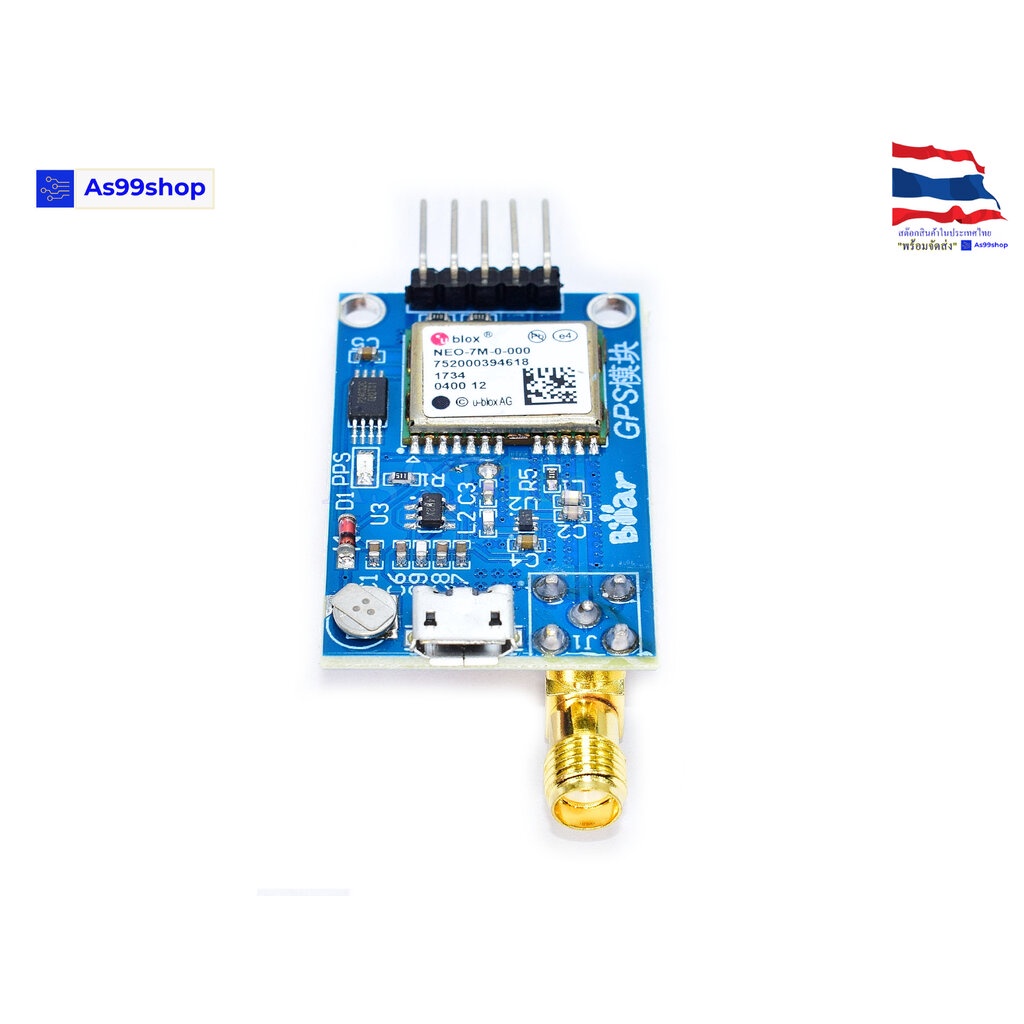

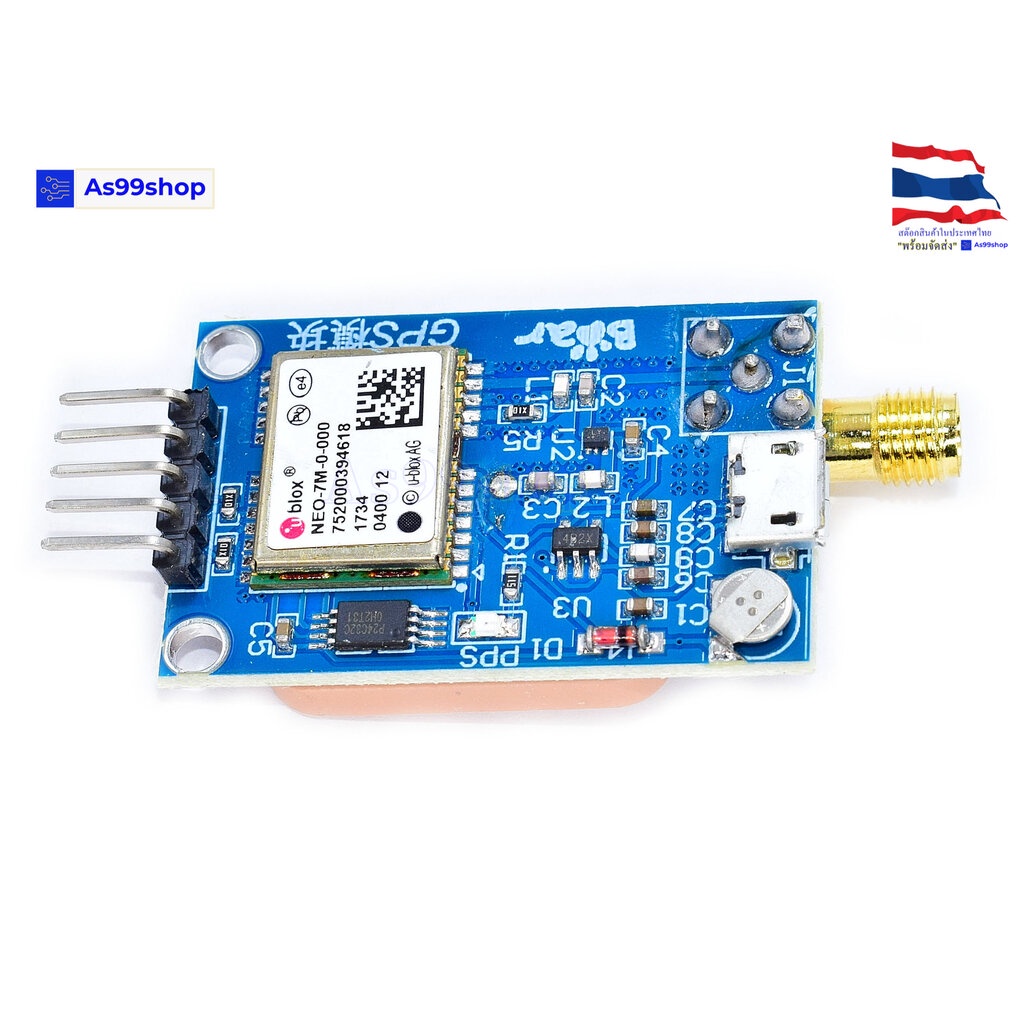

GPS module NEO-7M Module Development Board (ไม่มีเสาอากาศ)

GPS module NEO-7M Module Development Board (ไม่มีเสาอากาศ)

(มีสต็อกสินค้าในประเทศไทยพร้อมจัดส่ง)

Features:

- U-BLOX NEO-7M module, compact and excellent performance

- parameters can be set via serial port and saved in EEPROM

- with SMA interface, you can connect a variety of antenna, strong adaptability

- compatible with 3.3 V / 5 V level for easy connection to a variety of microprocessor systems

- back-up rechargeable battery on board

- with micro USB, no need for USB-TTL tools

- with TTL interface

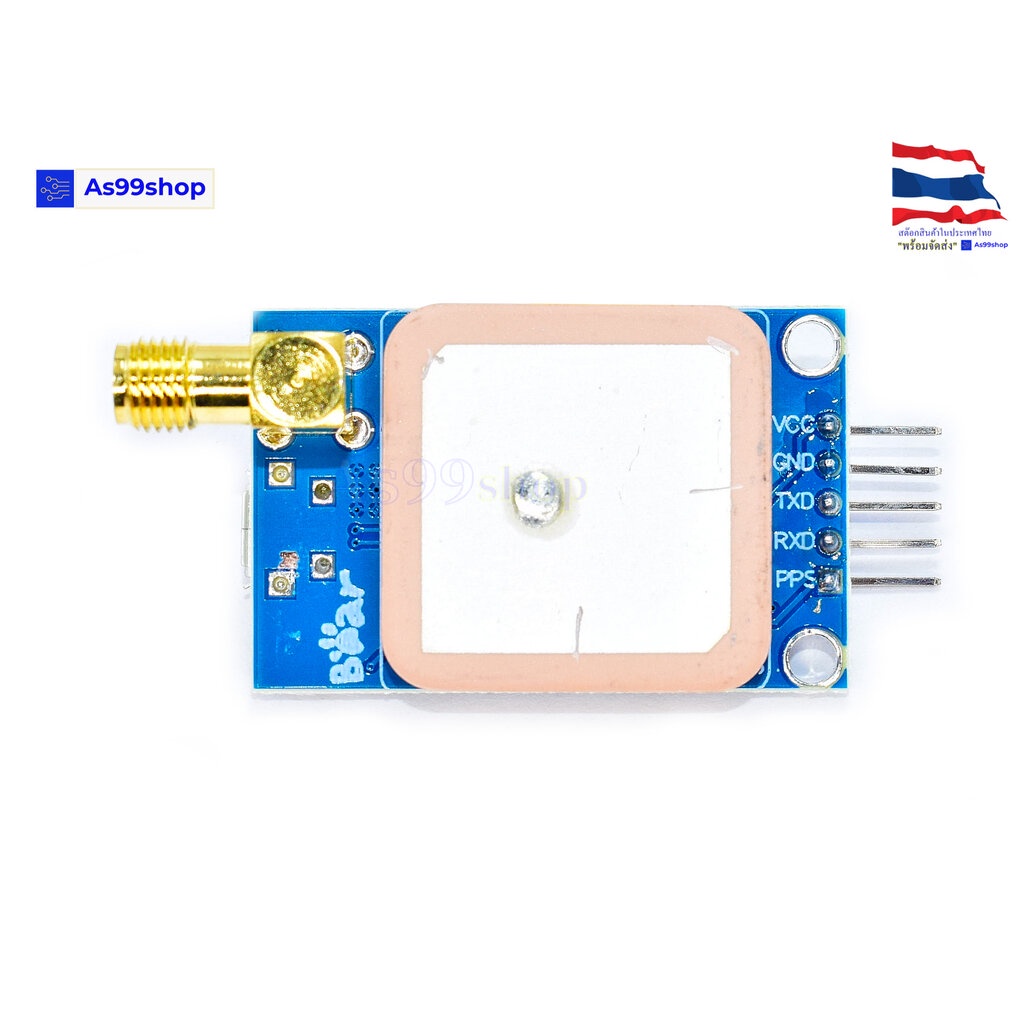

- onboard ceramic antenna

- sample code: https://playground.arduino.cc/UBlox/GPS

- evaluation software (U-Center) available for download

Specifications:

- supply voltage: 3.3 to 5 VDC (or by USB cable)

- connections: VCC (+5 V), GND (ground), TX, RX, PPS (time pulse)

- default baud rate: 9600 baud

- dimensions: 4 x 2.5 x 1.5 cm

- weight: 15 g
